The project should retain a common View Template for consistent graphics, visibility, filters, discipline settings, detail level, and other documentation standards, while excluding View Range from the parameters controlled by that template. Deselecting the corresponding Include checkbox allows each floor-plan view to maintain a level-specific View Range without losing the other standardized template settings.

Plan Regions are intended for localized conditions within a plan, such as a raised platform, clerestory, split level, or isolated area requiring a different cut plane. They are not an efficient substitute when the entire floor requires a different View Range because its floor-to-floor height differs from other levels.

Removing the View Template would weaken graphical and documentation consistency. Visibility/Graphics also does not control the View Range; it controls the visibility and appearance of categories and elements. Creating a separate template for every floor would produce unnecessary template proliferation and increase maintenance risk because future standard changes would need to be repeated across numerous nearly identical templates.

Excluding only the variable parameter provides the correct balance between corporate standardization and project-specific view configuration.

Reference topics: View Templates; View Range; template-controlled parameters; Plan Regions; floor-plan standards; graphical consistency.

A mandatory multidisciplinary review session is the strongest method for ensuring that contributors understand the BEP rather than merely receive it. The session allows the BIM manager to explain model ownership, coordination procedures, file structures, software requirements, information exchanges, quality-control responsibilities, naming conventions, issue workflows, and escalation processes. It also enables each discipline to identify ambiguities and confirm acceptance before implementation begins.

Following review and approval, the BEP should be retained as the official controlled project document in the Common Data Environment. This provides an accessible reference and establishes the approved baseline against which later revisions can be tracked.

Uploading a live copy to a shared folder is necessary for accessibility, but distribution alone does not demonstrate that participants understand their obligations. Including the BEP in the contract provides formal status but does not replace operational onboarding. Email signatures confirm receipt or acknowledgment, not comprehension, and can lead to disconnected copies outside the controlled document environment.

The best process combines formal review, multidisciplinary approval, controlled publication, and ongoing accessibility. Among the available choices, option B most completely addresses understanding, agreement, and official document control.

Reference topics: BIM Execution Plan onboarding; multidisciplinary review; roles and responsibilities; controlled documentation; Common Data Environment; approval and revision management.

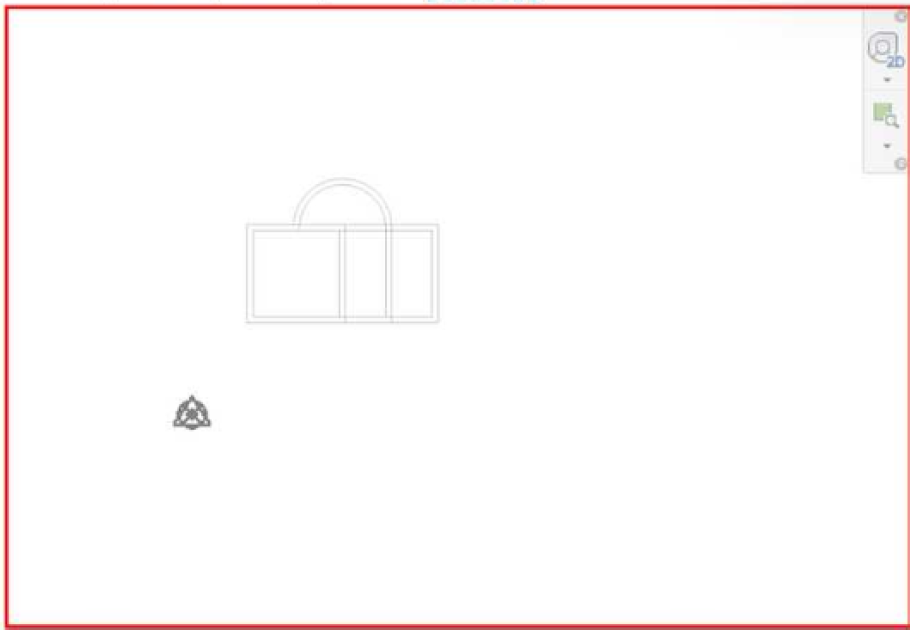

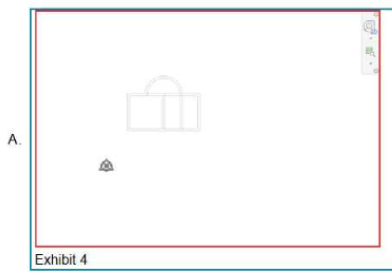

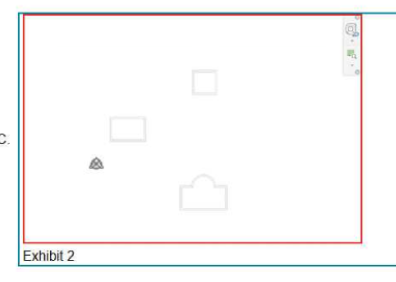

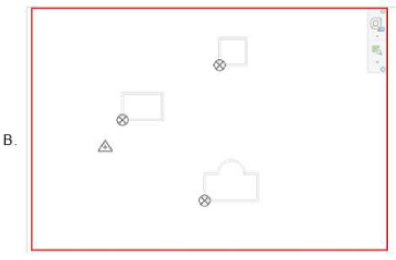

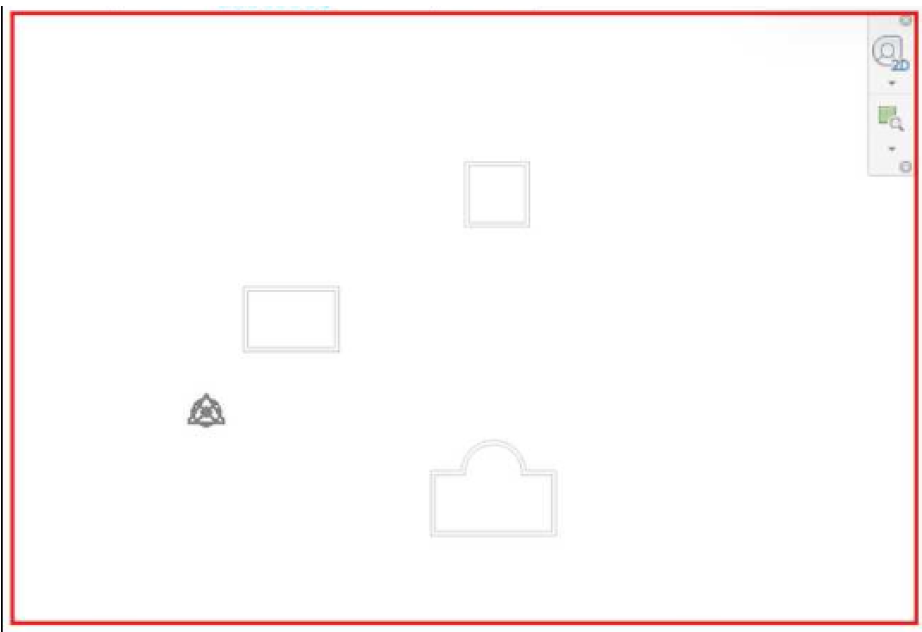

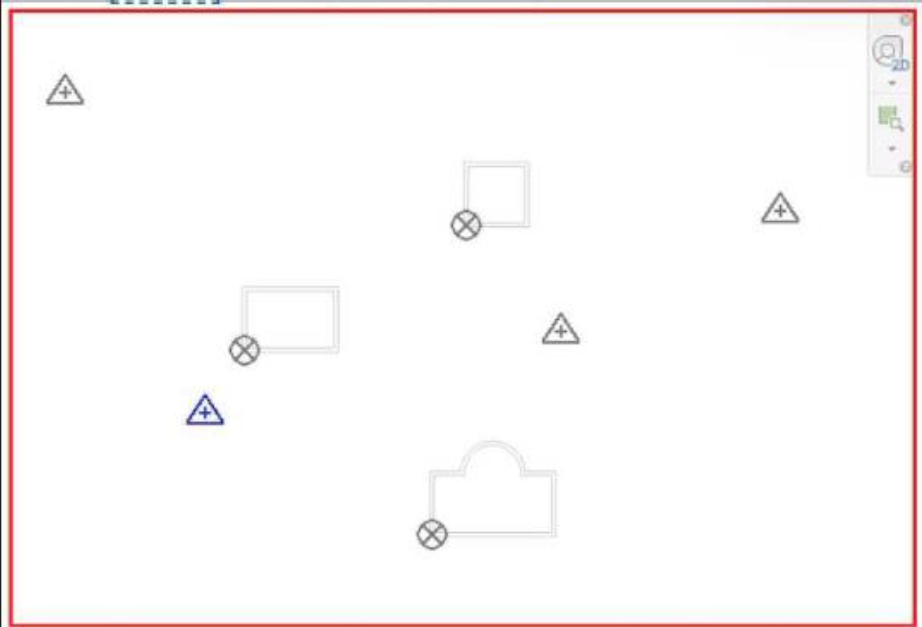

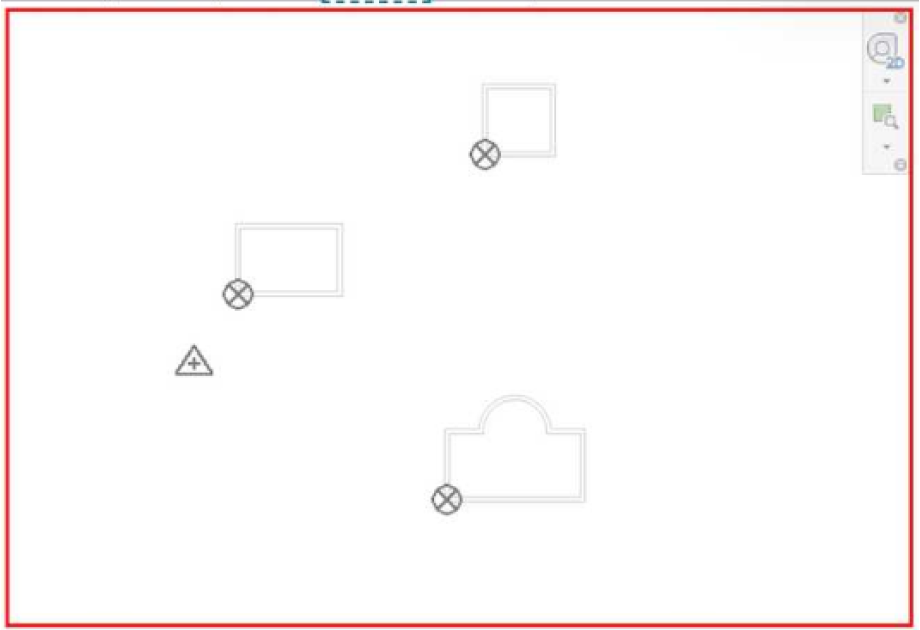

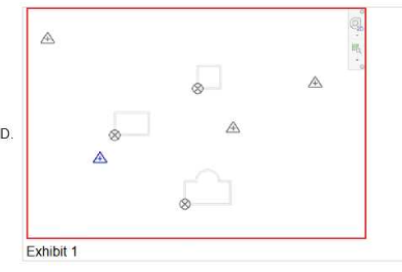

The Survey Point represents the shared real-world or site coordinate framework. Placing or defining it consistently at the common site origin allows every building model to relate to the same survey reference for federation, site plans, civil coordination, and geographically consistent exports.

Each building should retain its own Project Base Point because this point supports the building's local project-coordinate framework. A building may use a convenient internal datum and orientation suited to its grids, geometry, and documentation while still maintaining a transformation to the common survey system. This separation allows the buildings to remain independently manageable without losing site-wide positional accuracy.

Placing every Project Base Point at the shared site origin would eliminate the intended distinction between each building's local coordinate basis and the common site reference. Likewise, using a single Project Base Point across all separate models is not how Revit coordinate systems operate; each model has its own internal origin, Project Base Point, and Survey Point. Option B is imprecise because the requirement is not to establish unrelated Survey Points, but to align the models to one shared site origin.

The correct arrangement is a common Survey Point reference combined with a locally appropriate Project Base Point for each building.

Reference topics: Survey Point; Project Base Point; multi-building coordination; local versus shared coordinates; site federation; building-specific origins.

Before releasing an editable or reference model to a contractor, the BIM manager must confirm that the required digital-content release has been executed. Verbal acknowledgement that the construction documents govern does not adequately define permitted model uses, reliance limitations, intellectual-property restrictions, model status, or responsibility for downstream fabrication decisions.

A digital-content release should identify the purpose of the transfer, authorized recipients, accepted file formats, issue date, model-development status, and limitations on modification or redistribution. It should also clarify that the model may contain incomplete, approximate, or non-contractual information and that the recipient remains responsible for verifying fabrication and construction requirements against the governing documents.

Adding the contractor directly to the project environment could expose additional data and does not replace formal release authorization. Sending a copied model immediately bypasses document-control and risk-management procedures. Exporting sheets to DWG may not satisfy the contractor's stated need for model geometry and does not eliminate the requirement to control digital information distribution.

Once the release is confirmed, the BIM manager should prepare a controlled model package containing only the information required for the authorized purpose.

Reference topics: Digital-content release; external model distribution; contractual reliance; intellectual-property controls; authorized BIM uses; information-risk management.

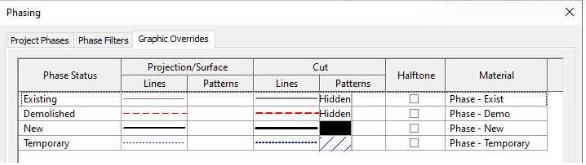

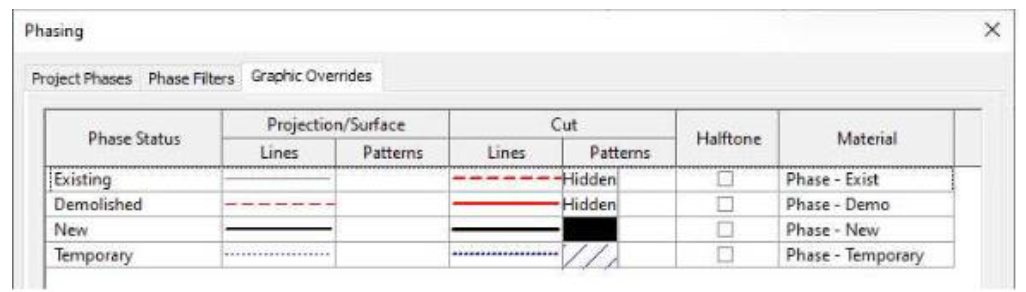

Exhibit 1 correctly assigns a red dashed line pattern to the Demolished phase status for both Projection/Surface Lines and Cut Lines. This is required because demolished elements may appear either in projection or in section, depending on the view orientation and whether the element is intersected by the view's cut plane.

Configuring only Projection/Surface Lines would leave demolished elements displayed differently when cut. Conversely, changing only Cut Lines would not produce the required standard in elevations, plans, or other views where the elements are viewed in projection. The phase graphic override must therefore consistently define the colour and line pattern in both graphical conditions.

This setting belongs in the firm's Revit project template so that future projects inherit the standard. The corresponding phase filters must also be configured to apply the Demolished override in relevant demolition and construction views. A graphic override does not operate independently; the active phase and phase filter determine whether an element is classified and displayed as existing, demolished, new, or temporary.

Reference topics: Revit phasing; Phase Graphic Overrides; demolished-element standards; phase filters; projection and cut graphics; corporate project templates.
