Most Recent Cisco 100-150 Exam Dumps

When a Cisco switch is not accessible from the network, the recommended out-of-band method to access its running configuration is through the console port. Out-of-band management involves accessing the network device through a dedicated management channel that is not part of the data network. The console port provides direct access to the switch's Command Line Interface (CLI) without using the network, which is essential when the switch cannot be accessed remotely via the network12.

Out-of-band (OOB) network interface configuration guidelines

Out of band management configuration

=========================

If you have any more questions or need further assistance, feel free to ask!

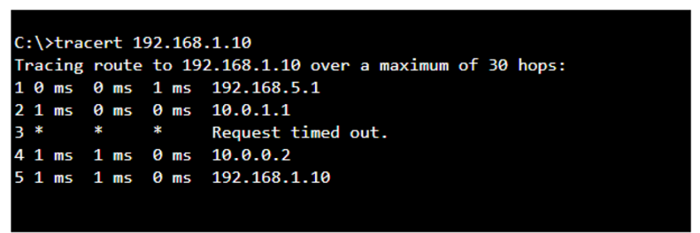

The tracert command output shows the path taken to reach the destination IP address, 192.168.1.10. The command output indicates:

* Hops 1 and 2 are successfully reached.

* Hop 3 times out, meaning the router at hop 3 did not respond to the tracert request. However, this does not necessarily indicate a problem with forwarding packets, as some routers may be configured to block or not respond to ICMP requests.

* Hops 4 and 5 are successfully reached, with hop 5 being the destination IP 192.168.1.10, indicating that the server is reachable.

Thus, the correct answer is C. The server with the address 192.168.1.10 is reachable over the network.

* Cisco Traceroute Command

* Understanding Traceroute

The tracert command output indicates that the server with the address 192.168.1.10 is reachable over the network. The asterisk (*) at hop 3 suggests that the probe sent to that hop did not return a response, which could be due to a variety of reasons such as a firewall blocking ICMP packets or the router at that hop being configured not to respond to ICMP requests. However, since the subsequent hops (4 and 5) are showing response times, it means that the packets are indeed getting through and the server is reachable12.

* How to Use Traceroute Command to Read Its Results

* How to Use the Tracert Command in Windows

* Statement B: 'The same default gateway IPv4 address is configured on each host on the local network.' This is true because all hosts on the same local network (subnet) use the same default gateway IP address to send packets destined for other networks.

* Statement D: 'The default gateway is the IPv4 address of the router interface connected to the same local network as the host.' This is true because the default gateway is the IP address of the router's interface that is directly connected to the local network.

* Statement A: 'The IPv4 address of the default gateway must be the first host address in the subnet.' This is not necessarily true. The default gateway can be any address within the subnet range.

* Statement C: 'The default gateway is the Loopback0 interface IPv4 address of the router connected to the same local network as the host.' This is not true; the default gateway is the IP address of the router's physical or logical interface connected to the local network.

* Statement E: 'Hosts learn the default gateway IPv4 address through router advertisement messages.' This is generally true for IPv6 with Router Advertisement (RA) messages, but not typically how IPv4 hosts learn the default gateway address.

* Cisco Default Gateway Configuration: Cisco Default Gateway

During the data encapsulation process, the Data Link layer of the OSI model is responsible for adding a header that contains MAC addressing information and a trailer used for error checking. The header typically includes the source and destination MAC addresses, while the trailer contains a Frame Check Sequence (FCS) which is used for error detection1.

The Data Link layer ensures that messages are delivered to the proper device on a LAN using hardware addresses and translates messages from the Network layer into bits for the Physical layer to transmit. It also controls how data is placed onto the medium and is received from the medium through the physical hardware.

The OSI Model -- The 7 Layers of Networking Explained in Plain English

OSI Model - Network Direction

Which layer adds both header and trailer to the data?

What is OSI Model | 7 Layers Explained - GeeksforGeeks

The show running-config command is used on a Cisco router to display the current operational settings that are actively configured in the router's RAM. This command outputs all the configurations that are currently being executed by the router, which includes interface configurations, routing protocols, access lists, and other settings. Unlike show startup-config, which shows the saved configuration that the router will use on the next reboot, show running-config reflects the live, current configuration in use.

show running-config: This command displays the current configuration running on the router. It includes all the operational settings and configurations applied to the router.

show protocols: This command shows the status of configured protocols on the router but not the entire configuration.

show startup-config: This command displays the configuration saved in NVRAM, which is used to initialize the router on startup, but not necessarily the current running configuration.

show version: This command provides information about the router's software version, hardware components, and uptime but does not display the running configuration.

Cisco IOS Commands: Cisco IOS Commands
