Question No. 1

A network engineer is troubleshooting OSPF multiare

AWhich Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

Ahierarchical CLI

BDR support for topology management

Crouting process enabled by default on all interfaces

Dshow ip ospf topology command

Show Answer

Correct Answer: A, A

OSPF Hierarchical CLI and CLI Inheritance

Hierarchical CLI is the grouping of related network component information at defined hierarchical levels such as at the router, area, and interface levels. Hierarchical CLI allows for easier configuration, maintenance, and troubleshooting of OSPF configurations. When configuration commands are displayed together in their hierarchical context, visual inspections are simplified. Hierarchical CLI is intrinsic for CLI inheritance to be supported.

With CLI inheritance support, you need not explicitly configure a parameter for an area or interface. In the software, the parameters of interfaces in the same area can be exclusively configured with a single command, or parameter values can be inherited from a higher hierarchical level---such as from the area configuration level or the router ospf configuration levels.

More information: https://www.cisco.com/c/en/us/td/docs/iosxr/ncs5500/routing/71x/b-routing-cg-ncs5500-71x/b-routing-cg-ncs5500-71x_chapter_011.html#con_1059437

guide/rc40xr12k_chapter4.html#con_1059437

Question No. 2

Which two differences should be considered when deciding whether to implement to implement routing policies or route maps? (Choose two.)

ASequences are added after implementing a route map, but routing policies must be reconfigured when change is needed.

BRoute maps are implemented using hierarchical policies, but routing policies must be implemented sequentially.

CRoute maps require an explicit deny at the end of the sequence, but routing policies have an implicit deny at the end of the program.

DRoute policies require sequence numbers, but route maps are implemented without sequencing.

ERoute maps are supported in Cisco 10S Software and routing policies are supported in Cisco IOS XR Software.

Show Answer

Correct Answer: A, E

Question No. 3

Refer to the exhibit.

A network engineer implemented this segment routing configuration. Which statement

about the output is true?

AThis range conflicts with the segment routing local block range.

BThe device must be reloaded for these ranges to be allocated and used.

CThe default segment routing global block range is being used on this device.

DA nondefault segment routing global block range is being used on this device.

Show Answer

Correct Answer: D

segment-routing-book/seg-routing-global-block.html

Question No. 4

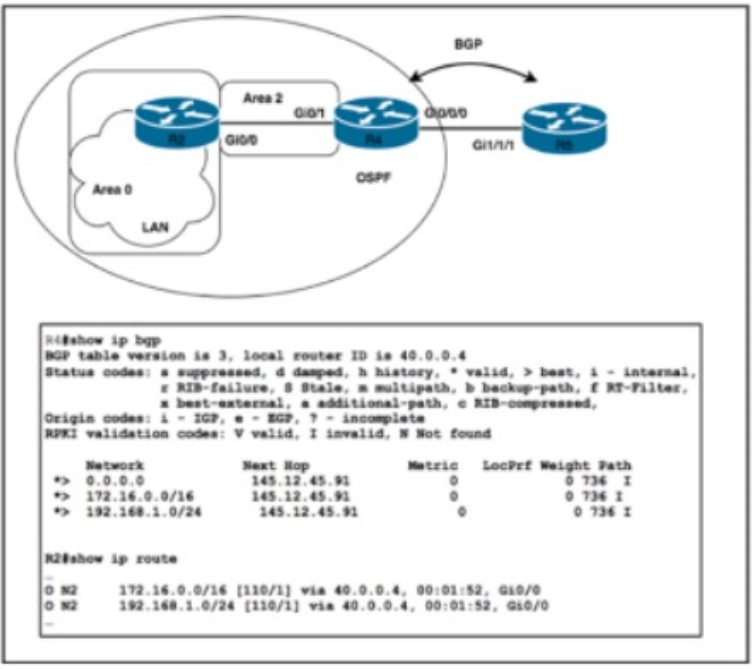

Refer to the exhibit.

OSPF is an interior routing protocol on the network. R2 Is In the backbone area, and R4 is In a totally NSSA are

a. R5 announces only the 0.0.0.0/0 route to R4 via BGP. R4 is configured with redistribute bgp 736 metric-type 2. After the most recent maintenance window. R2 no longer has the default route via R4. Which action must the network engineer take to correct the reachability problem?

AConfigure area 2 nsta no-summary under the global router configuration on router R2.

BConfigure default-information-originate under the OSPF configuration on router R4.

CConfigure ip route 0.0.0.0 0.0.0.0 nullO under the global router configuration on router R4.

DConfigure area 2 nssa translate type7 no-suppress-fa under the OSPF configuration on router R2.

Show Answer

Correct Answer: A

Question No. 5

An engineer with an employee ID: 4441 70:118 must implement PIM-SSM in the network to support a new multicast messaging service. All the routers in the network run a distance vector routing protocol. Unicast routing is established on the network and is working normally. What must the engineer enable to continue the implementation process?

APIM dense mode and IGMPv2 on all interfaces that participate in multicast

BIGMPv3 on all interfaces that participate in multicast

CPIM dense mode on all devices on the network

DPIM RP feature on the network

Show Answer

Correct Answer: D
