To validate a Java Agent configuration, the Performance Analyst should inspect the startup script, controller-info.xml, and relevant environment variables.

The startup script must contain the correct -javaagent argument pointing to the Java Agent JAR. It may also define Java system properties for the Controller host, port, SSL setting, application name, tier name, node name, account credentials, and other agent parameters. Incorrect paths or conflicting -Dappdynamics.* values can prevent registration or cause the agent to report under the wrong entity.

The controller-info.xml file is the Java Agent's primary configuration file. The analyst should verify Controller connectivity settings, account details, access key, application identity, tier identity, node identity, and SSL configuration.

Environment variables must also be reviewed because containerized and automated deployments commonly provide AppDynamics settings through variables. These values may override or supplement file-based configuration and can explain unexpected registration behavior.

/etc/sysctl.conf contains operating-system kernel parameters and is not a Java Agent configuration source. controller-info.yaml is not the standard Java Agent configuration file.

Relevant CAAPA topics include Java Agent Installation, Agent Registration, Controller Connectivity, controller-info.xml, Java System Properties, Environment Variables, and Application--Tier--Node Naming.

Business Transaction Discovery Sessions allow a Performance Analyst to browse the application's classes and methods while identifying suitable entry points for custom Business Transaction detection. The discovery process observes application execution and exposes loaded or invoked code structures, enabling the analyst to locate the class and method that represent the beginning of a meaningful transaction.

Browsing classes helps narrow the search to the relevant package or application component. After selecting a class, the analyst can inspect its methods and choose the appropriate method as the transaction entry point. This is particularly useful when automatic discovery does not recognize a proprietary framework, background process, scheduled task, or other nonstandard execution path.

Database Calls are analyzed as exit calls or backend activity rather than browsed as transaction entry-point code. JMX MBeans are accessed through JMX monitoring and metric configuration tools. Memory Objects are examined through memory diagnostics, object instance tracking, or leak-detection functions, not Business Transaction Discovery Sessions.

Relevant CAAPA Study Guide topics include Business Transaction Discovery Sessions, Class and Method Browsing, Custom Match Rules, Entry-Point Configuration, Automatic Discovery, and Application Agent Instrumentation.

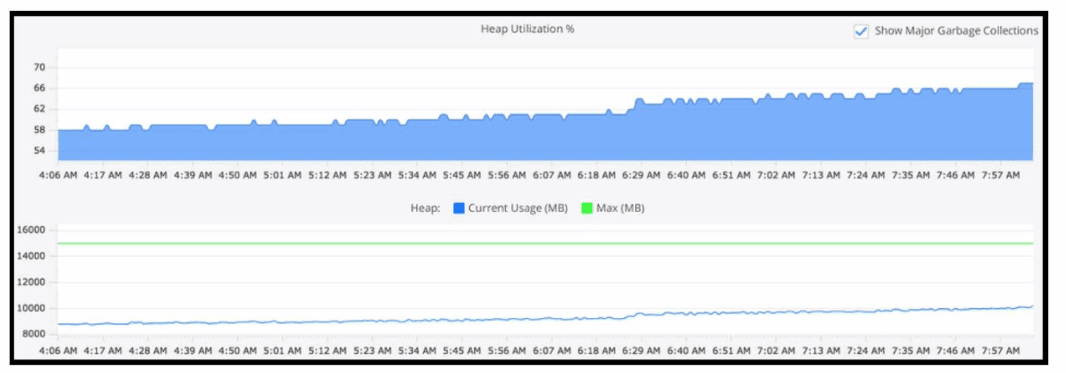

To confirm if a memory leak is occurring, one should refer to the Tiers and Nodes section of the AppDynamics Controller UI, navigate to the Memory tab, and observe the Heap Utilization over time in relation to the Heap's Current Usage (MB) versus the Maximum (MB) allocated. Consistent growth in heap utilization or an upward trend that does not decrement even after garbage collection indicates a potential memory leak.

The primary concern for a Performance Analyst when considering the impact of automatic diagnostic sessions is the application itself. Intensive diagnostic sessions can be resource-heavy, potentially affecting the application's performance. Therefore, it is often necessary to limit the duration and frequency of these sessions to ensure they do not negatively impact the application's end-user experience.

AppDynamics documentation on Diagnostic Sessions: https://docs.appdynamics.com/latest/en/troubleshoot/diagnostic-sessions

When a Performance Analyst observes a significant decrease in an application's workload (calls/min), reviewing the 'Top Business Transactions by Load' in the Application Dashboard can provide valuable insights. This feature allows the analyst to quickly identify which business transactions have experienced the most significant changes in load, potentially pinpointing the root cause of the overall workload decrease. It offers a focused view of the application's performance, highlighting areas that may require further investigation or immediate action.

AppDynamics documentation on Application Dashboard: Describes the features and capabilities of the Application Dashboard, including how to view and analyze the top business transactions by load.

AppDynamics documentation on Business Transactions: Details the importance of monitoring business transactions and how they can be used to understand application performance trends.
