Understanding Dell PowerEdge Server Out-of-Band Management

Server Management and Configuration Tools (14%)

Define in-band and OOB management and at-the-box-management

What is Out-of-Band (OOB) Management?

Out-of-band management refers to the ability to manage and monitor a server independently of the operating system or primary network interfaces. Dell PowerEdge servers utilize the Integrated Dell Remote Access Controller (iDRAC) for OOB management.

Characteristics of Out-of-Band Management:

Independent Operation:

OOB management operates independently of the server's operating system. It remains functional even if the server is powered off (as long as it is connected to a power source) or the operating system is unresponsive.

Dedicated Network Connection:

OOB management uses a network connection separate from the data network. This is typically achieved via a dedicated management port on the server, ensuring that management traffic does not interfere with data traffic.

Option C reflects this characteristic accurately.

No Need for Operating System Agents:

OOB management does not require any software agents running on the operating system. Management tasks are performed directly through the iDRAC hardware.

Option D is incorrect because OOB management does not require an OS-level agent.

Remote Management Capabilities:

Allows administrators to perform tasks such as monitoring hardware status, configuring settings, updating firmware, and even powering the server on or off remotely.

Explanation of Options:

Option A: Cannot manage a powered off device

Incorrect: OOB management allows for the management of powered-off devices as long as the iDRAC is receiving power.

Option B: Gives firmware update access to all users

Incorrect: Access to firmware updates and other critical functions is controlled via user permissions within iDRAC. Not all users have equal access.

Option C: Network connection separate from data source

Correct: OOB management uses a dedicated network interface, separate from the server's primary data network interfaces.

Option D: Requires an operating system level agent

Incorrect: OOB management is independent of the operating system and does not require any OS-level agents.

Dell Operate Reference:

Server Management and Configuration Tools (14%)

Define in-band and OOB management and at-the-box-management: Understanding the differences between in-band (requiring OS-level interaction) and out-of-band management is crucial for effective server administration.

Conclusion:

Dell PowerEdge server out-of-band management is characterized by the use of a network connection separate from the data source, allowing for independent and remote management of the server hardware without relying on the operating system.

Understanding Features of AMD Processors in Dell PowerEdge Servers

Server Components (26%)

Define the different processor, memory options, and memory configurations

Analyze server security features

Overview

AMD processors, specifically the AMD EPYC series, are utilized in Dell PowerEdge servers to provide high performance, scalability, and advanced security features. One of the standout features of AMD processors is Secure Encrypted Virtualization (SEV).

Explanation of Options

Option A: Supports up to four sockets

AMD EPYC processors in current Dell PowerEdge servers typically support up to two sockets. Intel processors are more commonly associated with supporting up to four sockets in server configurations.

Conclusion: Incorrect.

Option B: Up to 60 cores

AMD EPYC processors offer up to 64 cores per processor. While 'up to 60 cores' is close, it does not fully capture the maximum core count offered.

Conclusion: While partially correct, not the most distinctive feature.

Option C: Fastest processor speeds

Processor speeds vary depending on specific models and configurations. Both AMD and Intel offer processors with high clock speeds. Claiming the 'fastest processor speeds' is subjective and not a definitive feature.

Conclusion: Not a unique feature.

Option D: Secure Encrypted Virtualization

SEV is a security feature unique to AMD processors. It allows for the encryption of virtual machine memory, providing isolation between VMs and enhancing security in virtualized environments.

Features:

Encrypts VM memory with individual keys.

Protects against hypervisor-level attacks.

Enhances data security and compliance.

Conclusion: Correct Answer.

Dell Operate Reference

Server Components (26%):

Define the different processor, memory options, and memory configurations: Understanding the features and capabilities of AMD processors in server environments.

Analyze server security features: SEV is a significant security feature offered by AMD processors, enhancing virtualization security.

Conclusion

The standout feature of AMD processors in Dell PowerEdge servers is Secure Encrypted Virtualization, which enhances security in virtualized environments by encrypting VM memory.

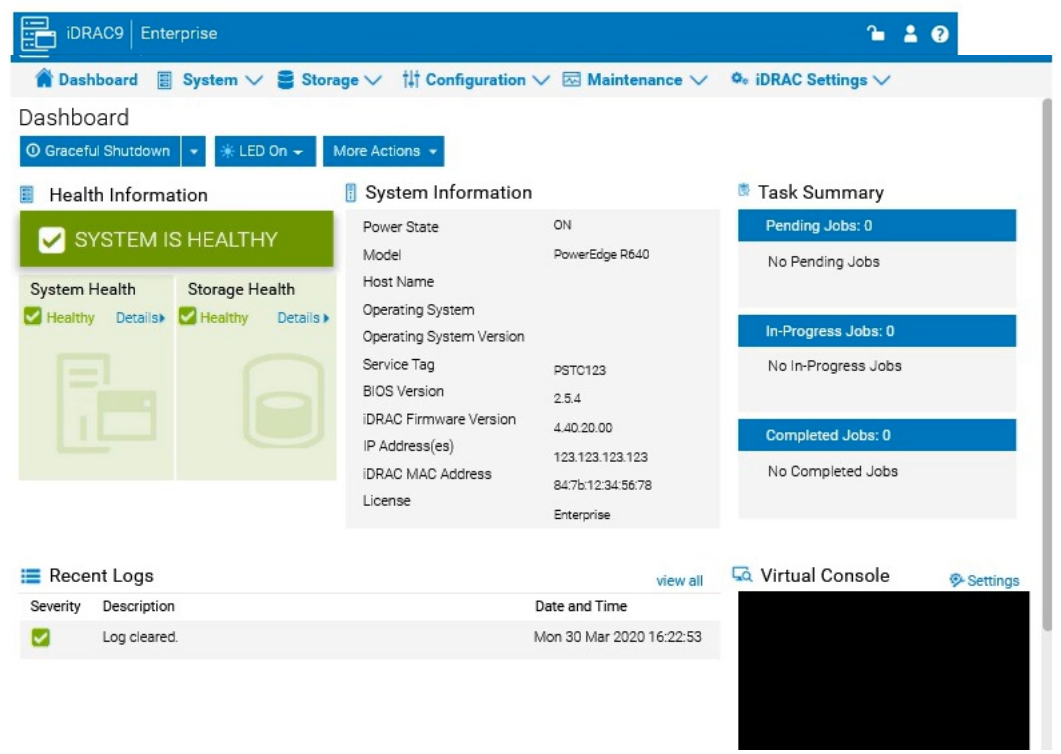

To investigate a power issue on a specific date, such as April 30, 2022, the system administrator should examine the iDRAC logs for entries related to power supply faults or failures. Here's how to approach finding the correct answer:

Step-by-Step Approach:

Access the System Logs:

In the iDRAC interface, navigate to the Dashboard tab.

Scroll down to the Recent Logs section or navigate to System Logs under Maintenance or iDRAC Settings (depending on the iDRAC version) to access detailed logs.

Filter Logs by Date:

Use the filter option to specify the date, focusing on entries from April 30, 2022. This will help narrow down relevant events.

Identify Power-Related Entries:

Look for log entries that mention power supply issues or voltage faults around the specified date. In this case, entries related to under-voltage faults or power supply failures will be critical.

Interpret the Log Entries:

Based on typical power fault logs, consider the possible answers:

A . Under voltage fault detection on power supply 1: Indicates a voltage issue was detected on PSU1.

B . Power supply 2 has failed: Indicates PSU2 has completely failed.

C . Under voltage fault detected on power supply 2: Indicates a voltage issue was detected on PSU2.

D . Power supply 1 has failed: Indicates PSU1 has completely failed.

The specific log entry depends on the exact wording in the logs. However, from the options provided, if the administrator received a notification about a power issue, the most likely scenario involves a failure or under-voltage detection.

Understanding Easy Restore Functionality

Server Troubleshooting (32%)

Explain Easy Restore, diagnostic utilities, and hardware diagnostic options

What is Easy Restore?

Easy Restore is a feature in Dell PowerEdge servers that automatically restores system-specific information after a system board replacement.

Purpose: Minimizes downtime and simplifies recovery by retaining critical system identity information.

Data Restored by Easy Restore

Service Tag: The unique identifier (serial number) of the server.

System Configuration Settings: Includes BIOS settings and other non-volatile configurations.

Data NOT Restored by Easy Restore

Option B: HBA Configuration

Host Bus Adapter settings are not restored automatically.

Option C: PERC Configuration

RAID configurations need to be backed up and restored separately.

Option D: Lifecycle Controller Log

Logs are stored on the system board and do not transfer after replacement.

Evaluation of Options

Option A: Service Tag

Correct Answe r: Easy Restore recovers the Service Tag, preserving the server's identity.

Option B: HBA Configuration

Analysis: Requires manual configuration or restoration from a backup.

Option C: PERC Configuration

Analysis: RAID settings are critical but need separate backup and restoration procedures.

Option D: Lifecycle Controller Log

Analysis: Logs are not preserved after system board replacement.

Dell Operate Reference

Server Troubleshooting (32%)

Highlights the importance of understanding what Easy Restore can and cannot recover.

Conclusion

After replacing the system board on a Dell PowerEdge 16G server, Easy Restore will recover the Service Tag, ensuring the server maintains its unique identity within the network and management systems.

Understanding the iDRAC Direct USB Port and Its Default IP Address

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Overview of iDRAC Direct USB Port

The Integrated Dell Remote Access Controller (iDRAC) provides remote management capabilities for Dell PowerEdge servers. The iDRAC Direct USB port allows administrators to connect directly to the iDRAC interface using a USB cable, facilitating quick and secure server management without needing network access.

Default IP Address for iDRAC Direct USB Port

When an administrator connects to the iDRAC Direct USB port, the connection is assigned a default IP address to establish communication between the server and the management station. The default IP address is crucial for accessing the iDRAC web interface via a browser.

The default IP address for the iDRAC Direct USB connection is 169.254.0.3.

Explanation of Options

Option A: 169.254.0.3

Correct Answe r: This is the default IP address assigned to the iDRAC Direct USB port for

direct management access.

Option B: 169.254.0.4

Incorrect: This IP address is not the default for the iDRAC Direct USB port.

Option C: 192.168.1.20

Incorrect: While this is a common private IP address, it is not used by default for iDRAC Direct USB connections.

Option D: 192.168.0.20

Incorrect: Similar to Option C, this is a private IP address but not associated with the iDRAC Direct USB port.

Dell Operate Reference

Server Management and Configuration Tools (14%): Understanding different connection methods to iDRAC is essential.

Define the function of the iDRAC, login procedures, licensing, and connection methods: Knowledge of default IP addresses and connection protocols is crucial for effective server management.

Conclusion

Knowing the default IP address for the iDRAC Direct USB port allows administrators to establish a direct connection efficiently, ensuring quick access for configuration and troubleshooting tasks.
