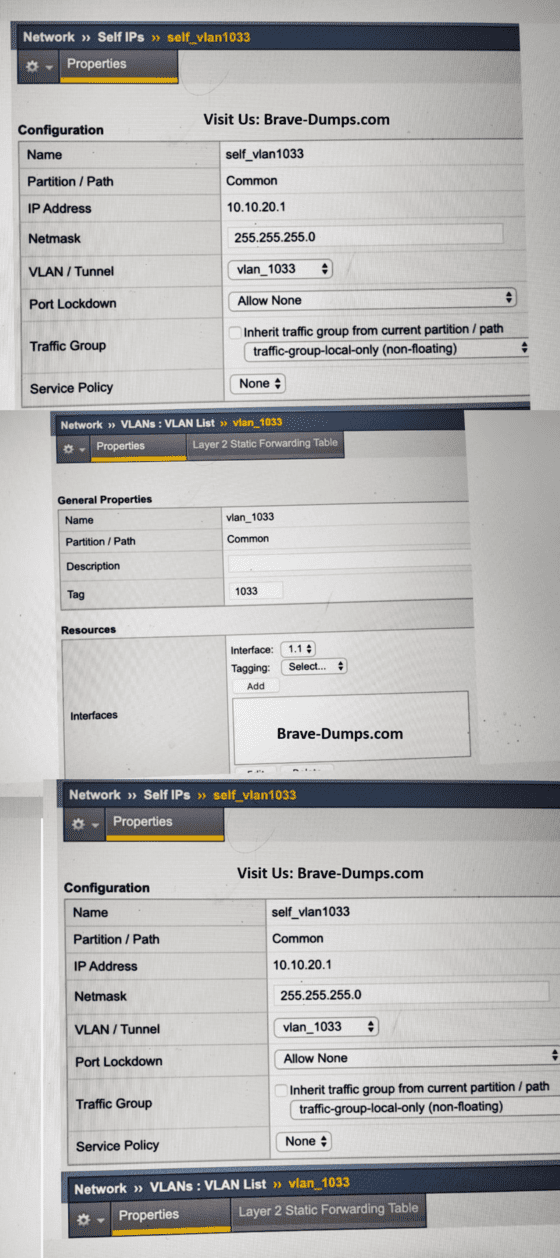

On BIG-IP systems, physical interface bandwidth is fixed by the link speed (for example, 1GbE or 10GbE). When traffic demand exceeds the capacity of a single interface, BIG-IP provides link aggregation through trunks.

Key concepts involved:

Interfaces

A single physical interface (such as 1.1) is limited to its negotiated link speed. You cannot exceed this capacity through software tuning alone.

Trunks (Link Aggregation)

A trunk combines multiple physical interfaces into a single logical interface.

BIG-IP supports LACP and static trunks.

Traffic is distributed across member interfaces, increasing aggregate bandwidth and providing redundancy.

VLANs are then assigned to the trunk, not directly to individual interfaces.

Why option B is correct:

Creating a trunk with two interfaces allows BIG-IP to use both physical links simultaneously.

This increases total available bandwidth (for example, two 10Gb interfaces up to 20Gb aggregate capacity).

This is the documented and supported method for scaling bandwidth on BIG-IP.

Why the other options are incorrect:

A . Increase the MTU

MTU changes affect packet size and efficiency, not total bandwidth capacity.

C . Assign two interfaces to the VLAN

BIG-IP does not support assigning a VLAN to multiple interfaces directly. VLANs must be associated with one interface or one trunk.

D . Set the media speed manually

Media speed can only be set up to the physical capability of the interface and connected switch port. It cannot exceed the hardware limit.

Conclusion:

To increase total available bandwidth on BIG-IP when a single interface is insufficient, the administrator must create a trunk object with multiple interfaces and move the VLAN onto the trunk. This aligns directly with BIG-IP data plane design and best practices.

When managing a large environment with hundreds of Virtual Servers, the most efficient way to identify the relationship between an iRule and the objects it manages is to view the properties of the iRule itself.

iRule Properties: Within the BIG-IP Configuration Utility, navigating to Local Traffic > iRules and selecting a specific iRule provides a 'Statistics' or 'Usage' tab (depending on the version). This view explicitly lists all Virtual Servers currently associated with that specific iRule.

Centralized Management: Instead of manually checking 235 individual Virtual Servers under the 'Virtual Servers' menu, the iRules menu acts as a central point of reference for that specific logic.

Data Plane Impact: Because iRules can modify traffic flow, headers, and load balancing decisions, seeing the full list of affected Virtual Servers is critical before making adjustments to avoid unintended side effects across the application portfolio.

In the BIG-IP system object hierarchy, health monitors can be applied at three levels: Node, Pool, and Pool Member.

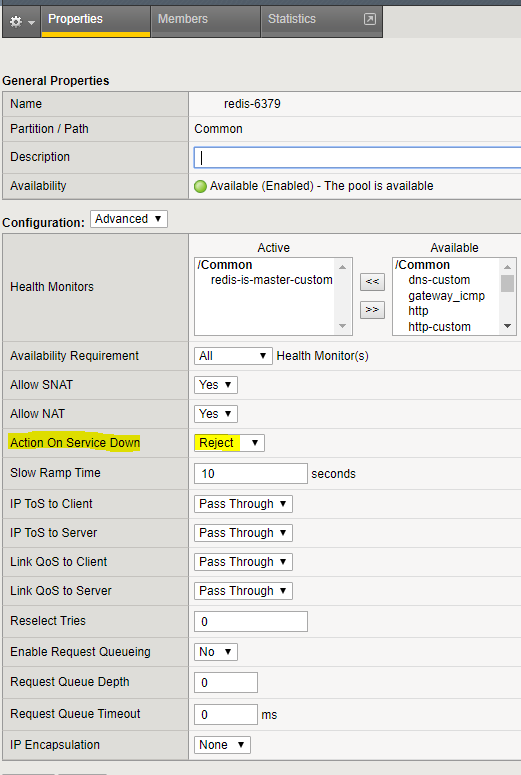

Pool Level (Properties): Applying a monitor at the Pool > Properties level is the most common and efficient administrative practice. When applied here, the monitor is inherited by all members of that pool. If the monitor fails for a specific member, that member is marked 'down' specifically for that pool.

Node Level: If a monitor is applied at the Node level (Local Traffic > Nodes), it checks the health of the physical IP address itself. If it fails, that node (and all pool members associated with it) is marked down globally across the entire system.

Member Level: Applying a monitor at the Pool > Members level allows for specific 'per-member' monitoring, which is usually only done if different members in the same pool require different health checks.

The Specific Case: For a standard database pool like DB_Pool, the administrator should navigate to Local Traffic > Pools > DB_Pool > Properties and select the appropriate monitor (e.g., a custom TCP or Oracle monitor) from the 'Health Monitors' configuration section.

In the BIG-IP system, when you need to prevent traffic from reaching a specific destination or being processed by the system, you utilize specific Virtual Server types that act as 'denial' points.

Reject Virtual Servers: When a packet matches a Reject virtual server, the BIG-IP system stops the packet from being processed and sends a reset (RST) in the case of TCP, or an ICMP unreachable message in the case of UDP. This is the preferred method for 'blocking' specific IPs when you want the sender to receive immediate notification that the connection was refused.

Drop Virtual Servers: A Drop virtual server simply discards the packet without sending any response back to the source. While effective for 'stealthing' a network, it is often less desirable for standard administration unless specifically mitigating a DoS attack.

Comparison with Standard: A Standard virtual server is used to process and load balance traffic to a pool of members; it does not inherently act as a 'blocking' mechanism for a single IP within a subnet unless combined with complex iRules or Packet Filters.

Context of the Questio n: To block responses (or connection attempts) for a specific IP while other traffic in the subnet might be handled by more permissive virtual servers, a more specific (higher precedence) Reject virtual server is the standard administrative approach.

To select the correct virtual server type, an administrator must balance the need for L7 intelligence versus raw throughput and hardware offloading:

Performance (Layer 4) Virtual Server: This type is designed for maximum speed. It uses the fastL4 profile, which allows the BIG-IP system to leverage the ePVA (Embedded Packet Velocity Accelerator) hardware chip. When a Performance (L4) virtual server is used, the system processes packets at the network layer (L4) without looking into the application payload (L7). This fulfills the requirement for hardware acceleration and avoids the overhead of HTTP optimization features, which are not needed in this scenario.

Performance (HTTP) Virtual Server: While fast, this type uses the fasthttp profile to provide some L7 awareness and optimization (like header insertion or small-scale multiplexing). Since the requirement specifically states HTTP optimization is not required, the L4 variant is more efficient.

Standard Virtual Server: This is a full-proxy type. While it offers the most features (SSL offload, iRules, Compression), it processes traffic primarily in the TMOS software layer (or via high-level hardware assistance), which is 'slower' than the pure hardware switching path of the Performance (L4) type.

Stateless Virtual Server: This is typically used for specific UDP/ICMP traffic where the system does not need to maintain a connection table. It is not appropriate for standard HTTP (TCP) applications requiring persistent sessions or stateful load balancing.

By choosing Performance (Layer 4) with the fastL4 profile, the organization ensures that the traffic is handled by the hardware acceleration chips, providing the lowest latency and highest throughput possible for their HTTP application.
