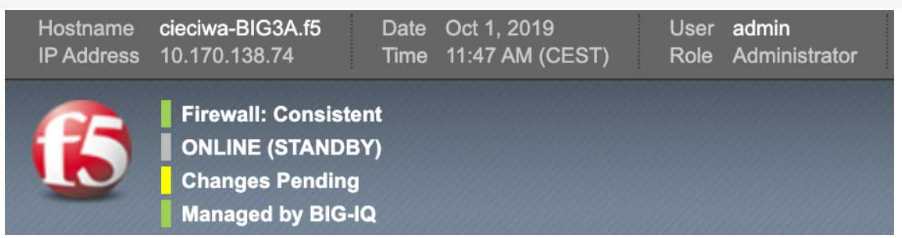

When traffic 'stabilizes after a few minutes' following a failover, it points to a network-level performance issue involving ARP cache on upstream routers and switches. Each BIG-IP interface has a unique hardware MAC address. During failover, the Standby device takes over the floating IP address, but the upstream switch still associates that IP with the MAC of the now-offline device. Traffic is lost until the switch learns the new MAC or its ARP entry expires. 'MAC Masquerading' solves this by creating a shared, virtual MAC address for the floating traffic group. This virtual MAC is used by whichever device is currently active. Because the MAC address for the virtual server IP never changes from the perspective of the network, the upstream devices do not need to update their ARP tables. This troubleshooting solution eliminates the delay associated with failover, providing a seamless transition and ensuring that application traffic flow is not disrupted when the BIG-IP HA state changes.

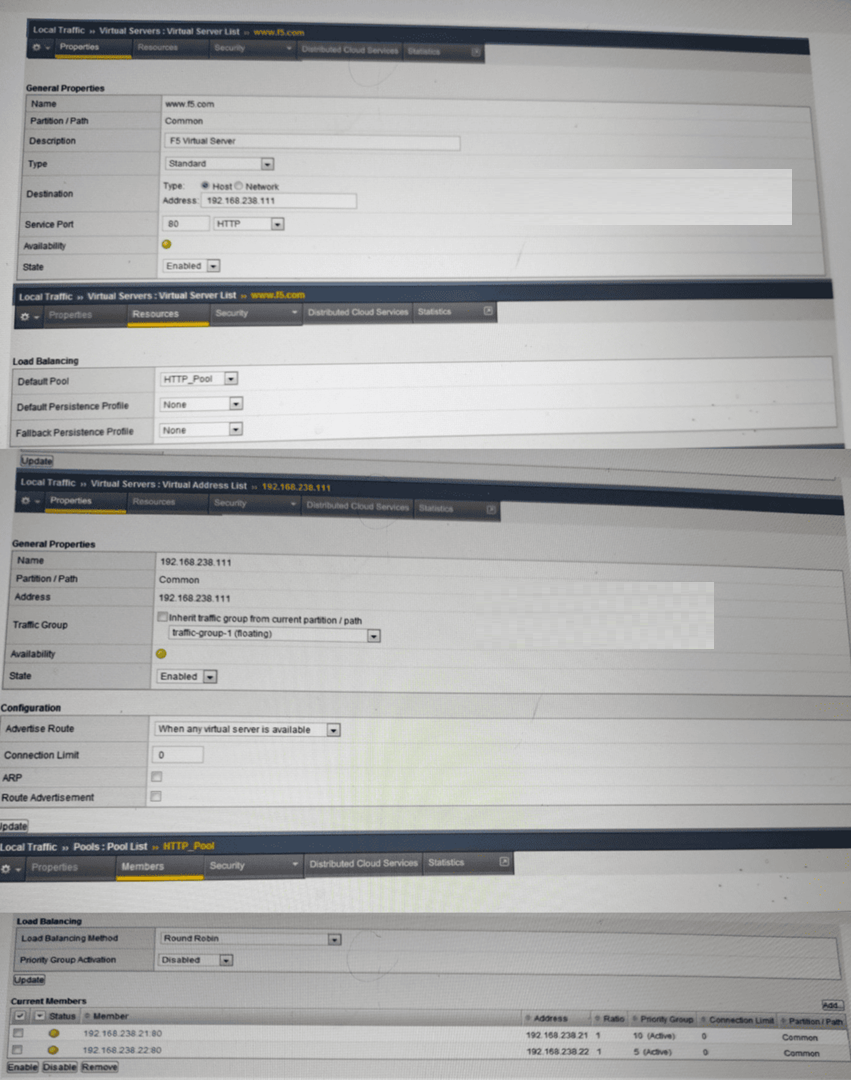

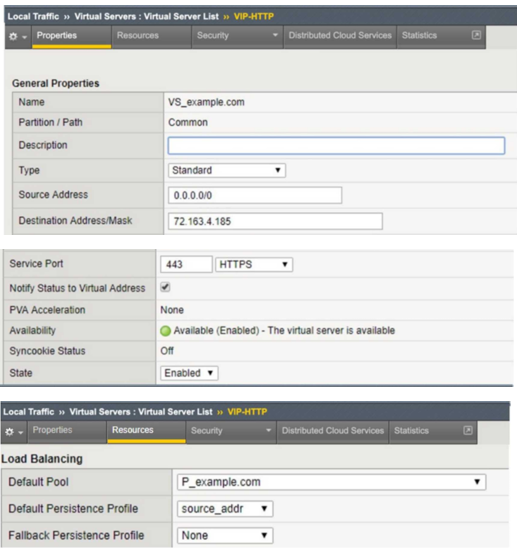

Based on the configuration screens provided in the exhibit, the primary reason for the connectivity failure is the disabled ARP setting on the Virtual Address.

Virtual Address ARP Setting: In a standard BIG-IP deployment, the Address Resolution Protocol (ARP) must be enabled for the Virtual Address (192.168.238.111 in this case). When enabled, the BIG-IP system responds to ARP requests from the local network gateway or adjacent devices for that specific IP address.

Exhibit Analysis: Looking at the 'Virtual Address List >> 192.168.238.111' properties section, the ARP checkbox is unselected (unchecked). Because ARP is disabled, the upstream router or client cannot resolve the MAC address for 192.168.238.111, and the traffic never reaches the BIG-IP LTM.

Availability Indicators: Note the yellow circle (status indicator) on both the Virtual Server and the Pool Members. In F5 BIG-IP, a yellow status typically indicates that the object is 'Available' (Enabled) but its monitors are not currently identifying it as 'Up' (which would be a green circle), or it is in a 'Monitor Unknown' state. However, even if a pool is available, the traffic must first reach the Virtual Server, which is prevented here by the lack of ARP.

Incorrect Options Analysis:

Priority Group Activation (A): The exhibit shows this is 'Disabled'. While this affects how load balancing picks members between groups, it does not prevent all content from being received; the system would simply use all members in the pool.

Route Advertising (C): While 'Route Advertisement' is also unchecked, this is generally only required if the BIG-IP needs to dynamically propagate the Virtual Address route via protocols like BGP or OSPF. For local segment connectivity, ARP is the fundamental requirement.

Pool Failing Health Check (D): While the yellow status suggests the health checks aren't 'Green' (Successful), the critical misconfiguration shown is at the network layer (ARP), which blocks traffic before health checks or load balancing even come into play for the user session.

A gateway_icmp monitor checks basic network reachability by sending ICMP echo requests (pings) to the pool member or its gateway. If the pool is markedDOWNwhile the server is confirmed to be online, the most likely cause is thatICMP traffic is being blocked.

Ahost-based firewall active on the server (Option C)can block ICMP echo requests or replies, preventing BIG-IP from receiving a successful response to the health check. This results in the monitor failing and the pool member being marked down, even though the server and application are otherwise functioning normally. This explanation is consistent with the scenario where other servers in the same subnet work correctly, indicating that routing and BIG-IP configuration are not the issue.

The other options are unrelated to ICMP monitoring. Logged-in users (Option A), missing patches (Option B), and stopped HTTP services (Option D) do not affect a gateway_icmp monitor. BIG-IP troubleshooting best practices recommend verifying ICMP reachability and firewall policies when diagnosing ICMP-based monitor failures.

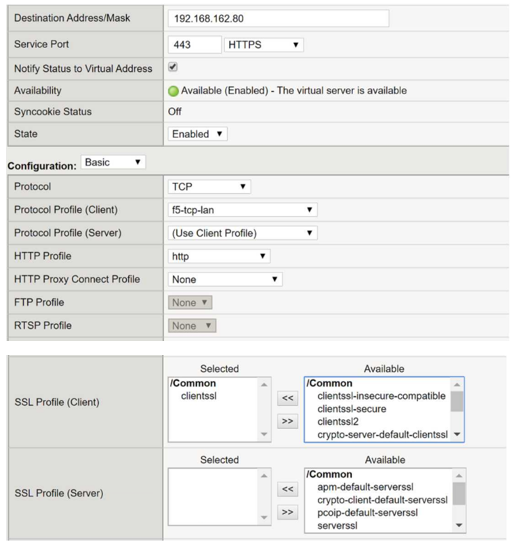

The issue is caused by the Source Address restriction configured on the virtual server.

Source Filter: The configuration contains the line source 192.168.0.0/16. This acts as an implicit Access Control List (ACL). The virtual server will only accept and process TCP connections if the client's source IP address falls within the 192.168.x.x range.

Why Ping Works: ICMP (Ping) is handled by the Virtual Address object, not the Virtual Server object. Unless ICMP is specifically disabled on the Virtual Address, it will respond to pings from any subnet, even if the Virtual Server itself is restricted by a source filter or is even disabled.

Evaluation of Other Options:

Disabled (Option A): If the VS were disabled, the configuration would typically show disabled or state down, and the symptoms would be similar, but the source filter is a more specific 'misconfiguration' in this context.

Port 80 (Option C): The configuration destination 10.99.20.50:http explicitly confirms it is listening on port 80.

Unallowed Subnet: If a client from a different network (e.g., 10.10.1.5) tries to connect, the BIG-IP will silently drop the connection or send a reset because it does not match the defined source criteria.

F5 recommends using the iHealth diagnostic tool to identify security vulnerabilities and receive specific remediation guidance.

QKView and iHealth: A QKView file is a comprehensive diagnostic snapshot of the BIG-IP system. When this file is uploaded to the F5 iHealth portal, it is automatically parsed against a database of known issues and security advisories.

Vulnerability Diagnosis: The iHealth platform includes automated checks specifically designed to surface security gaps and 'Heuristics' that match the system's current configuration and software version to known CVEs (Common Vulnerabilities and Exposures).

Remediation Guidance: For every identified vulnerability, iHealth provides direct links to the relevant F5 Security Advisory (K-article), which contains detailed remediation steps, such as specific software versions that contain a fix or temporary mitigation commands.

UCS vs. QKView: While a UCS (User Configuration Set) file is a backup of the system configuration, it is not the format used by the iHealth diagnostic engine for automated vulnerability scanning; the QKView is the required format for this process.
