Comprehensive and Detailed Explanation From FortiSOAR 7.6., FortiSIEM 7.3 Exact Extract study guide:

In accordance with the MITRE ATT&CK mapping utilized by FortiSIEM 7.3 and FortiSOAR 7.6, the described behaviors correspond to the following techniques:

Non-Standard Port (T1571): This technique involves adversaries communicating using a protocol and port pairing that are typically not associated. The incident report identifies HTTPS (TLS) traffic running on TCP 8443 rather than the standard port 443. FortiSIEM specifically includes built-in correlation rules, such as 'Suspicious Typical Malware Back Connect Ports,' designed to detect these protocol-port mismatches.

Exfiltration Over Alternative Protocol (T1048): This technique describes adversaries stealing data by exfiltrating it over a different protocol than the primary command and control (C2) channel. In this scenario, while the C2 channel is established via HTTPS on port 8443, the adversary is transferring staged files using DNS queries with oversized TXT payloads. DNS is a common 'alternative protocol' used to bypass standard data transfer monitoring and egress filtering.

Analysis of Incorrect Options:

Exploitation of Remote Services (B): This technique falls under Initial Access or Lateral Movement tactics, focusing on gaining entry into a system via vulnerabilities in network services like SMB or RDP. It does not apply to the maintenance of an established C2 channel or the exfiltration of data.

Hide Artifacts (D): This is a Defense Evasion technique where an adversary attempts to conceal their presence by removing traces such as log files or registry keys. While the attacker is 'imitating normal traffic,' the specific acts of using a non-standard port and DNS exfiltration are primary behavioral signatures defined by their own more specific techniques.

Comprehensive and Detailed Explanation From FortiSOAR 7.6., FortiSIEM 7.3 Exact Extract study guide:

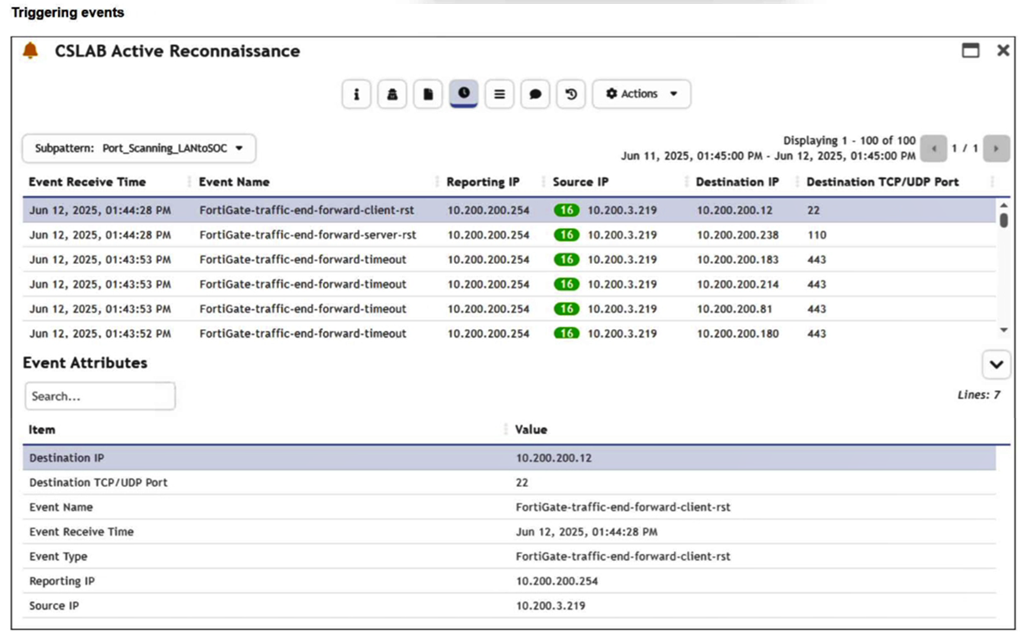

In FortiSIEM 7.3, the Triggering Events view is a dynamic table that displays the individual logs that caused a specific rule to fire. To manage the visibility of data within this specific view:

Interface Customization: The 'Triggering Events' tab includes a column management feature. By clicking on the column headers or the table settings icon (typically found at the top right of the event list), an analyst can customize the display columns. This allows the user to uncheck the 'Reporting IP' attribute, effectively hiding it from the view without altering the underlying data or rule logic.

Operational Efficiency: This is a common task in environments with a simplified topology where the 'Reporting IP' is redundant information. Customizing the view helps the analyst focus on the most relevant data points, such as 'Source IP,' 'Destination IP,' and 'Destination Port.'

Why other options are incorrect:

A (Incident Action): Clearing a field from the Incident Action configuration affects what data is sent in an email alert or passed to a SOAR platform, but it does not change the layout of the FortiSIEM GUI 'Triggering Events' page.

B (Disable Correlation): Disabling correlation for an attribute determines whether that attribute is used by the rules engine to group events. It does not control the visual display of columns in the incident dashboard.

C (Parsing Rules): Removing attributes via parsing rules is a destructive process that prevents the SIEM from indexing that data entirely. This would make the 'Reporting IP' unavailable for all searches and reports, which is excessive for a simple display preference.

Understanding the Requirements:

The objective is to create an incident and generate a report based on malicious attachment events detected by FortiAnalyzer from FortiSandbox analysis.

The endpoint hosts are protected by FortiClient EMS, which is integrated with FortiSandbox. All logs are sent to FortiAnalyzer.

Key Components:

FortiAnalyzer: Centralized logging and analysis for Fortinet devices.

FortiSandbox: Advanced threat protection system that analyzes suspicious files and URLs.

FortiClient EMS: Endpoint management system that integrates with FortiSandbox for endpoint protection.

Playbook Analysis:

The playbook in the exhibit consists of three main actions: GET_EVENTS, RUN_REPORT, and CREATE_INCIDENT.

EVENT_TRIGGER: Starts the playbook when an event occurs.

GET_EVENTS: Fetches relevant events.

RUN_REPORT: Generates a report based on the events.

CREATE_INCIDENT: Creates an incident in the incident management system.

Selecting the Correct Connector:

The correct connector should allow fetching events related to malicious attachments analyzed by FortiSandbox and facilitate integration with FortiAnalyzer.

Connector Options:

FortiSandbox Connector:

Directly integrates with FortiSandbox to fetch analysis results and events related to malicious attachments.

Best suited for getting detailed sandbox analysis results.

Selected as it is directly related to the requirement of handling FortiSandbox analysis events.

FortiClient EMS Connector:

Used for managing endpoint security and integrating with endpoint logs.

Not directly related to fetching sandbox analysis events.

Not selected as it is not directly related to the sandbox analysis events.

FortiMail Connector:

Used for email security and handling email-related logs and events.

Not applicable for sandbox analysis events.

Not selected as it does not relate to the sandbox analysis.

Local Connector:

Handles local events within FortiAnalyzer itself.

Might not be specific enough for fetching detailed sandbox analysis results.

Not selected as it may not provide the required integration with FortiSandbox.

Implementation Steps:

Step 1: Ensure FortiSandbox is configured to send analysis results to FortiAnalyzer.

Step 2: Use the FortiSandbox connector in the playbook to fetch events related to malicious attachments.

Step 3: Configure the GET_EVENTS action to use the FortiSandbox connector.

Step 4: Set up the RUN_REPORT and CREATE_INCIDENT actions based on the fetched events.

Fortinet Documentation on FortiSandbox Integration FortiSandbox Integration Guide

Fortinet Documentation on FortiAnalyzer Event Handling FortiAnalyzer Administration Guide

By using the FortiSandbox connector, the analyst can ensure that the playbook accurately fetches events based on FortiSandbox analysis and generates the required incident and report.

Understanding the Playbook Configuration:

The 'Malicious File Detect' playbook is designed to create an incident when a malicious file detection event is triggered.

The playbook includes tasks such as Attach_Data_To_Incident, Create Incident, and Get Events.

Analyzing the Playbook Execution:

The exhibit shows that the Create Incident task has failed, and the Attach_Data_To_Incident task has also failed.

The Get Events task succeeded, indicating that it was able to retrieve event data.

Reviewing Raw Logs:

The raw logs indicate an error related to parsing input in the incident_operator.py file.

The error traceback suggests that the task was expecting a specific input format (likely a name or number) but received an incorrect data format.

Identifying the Source of the Failure:

The Create Incident task failure is the root cause since it did not proceed correctly due to incorrect input format.

The Attach_Data_To_Incident task subsequently failed because it depends on the successful creation of an incident.

Conclusion:

The primary reason for the playbook execution failure is that the Create Incident task received an incorrect data format, which was not a name or number as expected.

Fortinet Documentation on Playbook and Task Configuration.

Error handling and debugging practices in playbook execution.

Comprehensive and Detailed Explanation From FortiSOAR 7.6., FortiSIEM 7.3 Exact Extract study guide:

According to the FortiAnalyzer 7.4 SOC Analyst official training material (Lesson 5: Automation) and supporting documentation for FortiSOAR 7.6 and FortiSIEM 7.3 integration, the following best practices are recommended for playbook portability:

Disable playbooks before exporting (A): When a playbook is exported, its current status (Enabled or Disabled) is preserved in the export file. If an Enabled playbook is imported into a destination ADOM where its trigger conditions are immediately met, it will start executing automatically. Disabling the playbook before export is a critical best practice to prevent unintended automated actions from occurring in the new environment before the analyst has had a chance to verify local configurations.

Include the associated connector settings (B): FortiAnalyzer allows you to include required connector configurations during the export process. By selecting this option, the exported file includes the necessary metadata and configurations for the connectors that the playbook relies on to execute its tasks. This ensures the playbook remains functional and portable across different FortiAnalyzer units or ADOMs without requiring the manual recreation of every connector.

Why other options are incorrect:

Move playbooks between ADOMs (C): There is no native 'Move' function for automation playbooks between ADOMs in the same sense as moving a device. The standard supported workflow for transferring automation logic is the Export and Import process.

Ensure names do not exist in target (D): While maintaining unique names is good practice, it is not a required 'best practice' for the export process itself because FortiAnalyzer automatically handles name conflicts. If an imported playbook shares a name with an existing one, the system automatically appends a timestamp to the new playbook's name to avoid a conflict.
