State Machine Events in UML are triggers for transitions and do not classify as objects or classifiers; thus they do not inherently have features:

A . Incorrect, because State Machine Events are not treated as classifiers with features.

B . Incorrect, though it hints at an extended use case, State Machine Events do not extend classifiers in standard UML usage.

C . Correct, State Machine Events are not Classifiers and therefore cannot have features such as properties or operations.

D . Incorrect, because UML State Machines certainly have an Event concept, but these Events are not classified as having features.

UML Specification: State Machine chapter, specifically sections discussing the nature of events and triggers.

Further insights can be found in the event and trigger management sections of the UML 2.5 Documentation.

In UML, modeling individual things (such as instances) involves making statements about them. Here are the details for each option:

A . A UML Model can contain individual things (e.g. Instances) UML does not prescribe the level of detail to be used in the description.

This statement is partially correct. UML models can indeed contain individual things (instances), but the level of detail is not explicitly prescribed by UML. However, the statement does not cover the possibility of incomplete or imprecise information.

B . A UML Model can contain statements about individual things If a thing is an instance of a Classifier, these statements must be consistent (all mandatory Properties must be defined, all Constraints must be satisfied).

While it is true that a UML model can contain statements about individual things (instances), the requirement for consistency (mandatory properties and constraints) is not explicitly mentioned in UML. Therefore, this option is not entirely accurate.

C . A UML Model can contain statements about individual things These statements can be incomplete, imprecise, and abstract, but not wrong.

This statement is also partially correct. UML allows for incomplete, imprecise, and abstract statements about individual things. However, it does not guarantee that these statements cannot be wrong.

D . A UML Model can contain statements about individual things. These statements can be incomplete, imprecise, abstract, may turn out to be wrong, or even be asserted as counterfactual.

This option provides a more accurate representation. UML allows for statements about individual things that can be incomplete, imprecise, abstract, and even potentially incorrect. It acknowledges the uncertainty and variability in modeling individual things.

E . A UML Model can only contain statements about sets of individual things (e.g. Classifiers).

This statement is incorrect. UML models can contain statements about both individual things (instances) and sets of things (classifiers).

UML 2.5.1 Specification

While the UML specification does not explicitly state the options, it provides the foundation for UML modeling principles and allows for flexibility in expressing statements about individual things.

Remember that UML is a modeling language, and its primary purpose is to capture and communicate information about systems and their components. The level of detail, precision, and correctness can vary based on the modeling context and the specific use case. Therefore, option D best reflects the UML approach to modeling individual things.

Please note that the information provided here is based on UML 2.5.1, and it's essential to consult the official UML specification for the most accurate and up-to-date details.

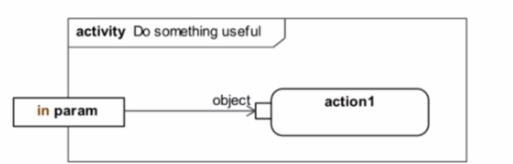

In the given UML activity diagram, 'action 1' is an action that executes the classifier behavior (intrinsic behavior) of an instance. The correct UML action that represents this behavior is:

A . CallBehaviorAction is used to call a behavior directly, but not necessarily the classifier behavior of the input object.

B . CallOperationAction is used to call an operation, which is not the intrinsic behavior of an instance.

C . StartObjectBehaviorAction is the correct answer. This action starts the execution of the classifier behavior of an object.

D . CallClassifierBehaviorAction is not a standard UML action.

UML Specification: Actions section, which explains the various types of actions including the StartObjectBehaviorAction.

Further details about actions that initiate behaviors of objects can be found in the UML 2.5 Documentation, specifically in the chapters discussing Actions in Activity diagrams.

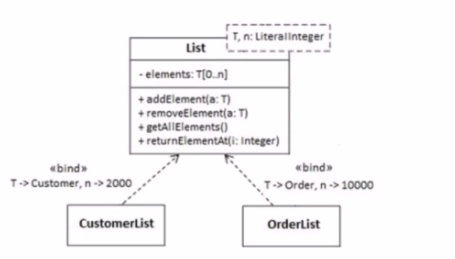

The class template List shown in the diagram fragment is a parametrized class with two template parameters: T and n. The signature of the class template includes both of these parameters. The template parameter T represents a type that can be bound to a specific class when the template is instantiated, while n represents an integer value that specifies the multiplicity of elements that can be contained in the list. Therefore, the signature of the class template List is the ordered set {T, n: Integer}, which includes both the type parameter T and the integer parameter n indicating the maximum number of elements the list can hold.

For question number 50, the correct answer is C: Control tokens are offered on the outgoing Control Flows of the ExceptionHandler. According to the UML 2.5 specification, when an Exception Handler completes its execution, it does not halt the execution of the thread or retain control tokens internally; instead, it passes control tokens along the outgoing Control Flows. This behavior allows the activity to continue processing other behaviors or activities, based on the exception handling outcome.

UML 2.5 Specification: Provides a detailed description of the behavior of Exception Handlers within activity diagrams, including how control tokens are managed upon the completion of an exception handling sequence.
