Comprehensive and Detailed Explanation

Prisma SD-WAN (formerly CloudGenix) defines three distinct Operational Modes for a branch site, which determine how the ION device processes traffic and interacts with the network.

Analytics Mode (Monitor): In this mode, the ION device is typically deployed inline or in a 'promiscuous' monitor state to gain visibility into network traffic without actively enforcing path selection policies.1 It 'learns' applications, bandwidth usage, and network characteristics (auditing) but does not steer traffic or block flows.2 This is often used during Proof of Concepts (POVs) or the initial 'burn-in' phase of a deployment to generate reports without risking network disruption.

Control Mode: This is the full production state. In Control Mode, the ION device actively enforces Path Policies, QoS Policies, and Security Policies. It builds Secure Fabric VPN tunnels, steers traffic based on application SLAs (e.g., sending voice over MPLS and bulk data over Broadband), and handles failover events.3 This is the required mode for a fully functional SD-WAN site.

Disabled Mode: This mode effectively shuts down the site's SD-WAN functionality from the controller's perspective. It is an administrative state used when a site is being decommissioned, provisioned but not yet live, or isolated for troubleshooting. In this state, the device does not participate in the fabric.

Comprehensive and Detailed Explanation

The AppX (Application Experience) score is a proprietary metric used by Prisma SD-WAN to provide a holistic view of user experience, rather than just network statistics. It is calculated based on three key components:

Transaction Failure Rate (A): The percentage of application transactions that failed (e.g., TCP resets, HTTP 500 errors). This indicates availability.

Network Transfer Time (B): The time taken for packets to traverse the network (WAN/LAN latency). This indicates network health.

Server Response Time (C): The time taken by the application server to respond to a request. This indicates backend performance.

Why not D or E?

Bandwidth Utilization (D) is a capacity metric, not a direct measure of quality. A link can be 90% full but still deliver packets quickly (good AppX), or 10% full but dropping packets (bad AppX).

Jitter (E) is a network-layer metric primarily relevant for UDP Real-Time media. While important, the high-level 'AppX' score for general TCP apps focuses on the 'Time-to-Glass' metrics (NTT/SRT) and success rates.

Comprehensive and Detailed Explanation

According to Palo Alto Networks Prisma SD-WAN administrator documentation regarding Path Policy configuration, specific rules apply when utilizing Standard VPNs (IPSec tunnels to non-ION devices, such as Prisma Access or third-party firewalls) as an L3 Failure Path.

When a Path Policy rule is configured, the administrator defines Active Paths, Backup Paths, and L3 Failure Paths. The L3 Failure Path is a 'last resort' mechanism used when all Active and Backup paths are unavailable (Layer 3 down).

If Standard VPN is selected as the L3 Failure Path type, the system explicitly requires that the administrator also associates it with a specific Standard Services and DC Group within that same policy rule.

The ION device uses the Standard Services and DC Group to identify the specific remote endpoint (tunnel destination) where the traffic should be routed. Unlike a 'Direct' (Internet) path which can simply route out to the WAN, a Standard VPN represents a logical tunnel. If the policy rule designates 'Standard VPN' as the failure path but leaves the 'Standard Services and DC Group' field empty or unselected, the ION effectively has a directive to 'use a VPN' but lacks the instruction on which VPN group to use for this specific application context. Consequently, even if the IPSec tunnel to Prisma Access is physically up and stable, the policy engine cannot resolve the next hop for the 'SuperSaaSApp' traffic, resulting in the packets being dropped. To resolve this, the administrator must edit the Path Policy rule to ensure the specific Standard Service/DC Group representing Prisma Access is checked/selected for the L3 Failure Path.

Prisma SD-WAN is built on an application-defined fabric that prioritizes deep visibility into network traffic and application performance.1 To deliver the high-fidelity flow data and application visibility required for modern operations, Prisma SD-WAN utilizes IPFIX (Internet Protocol Flow Information Export).2 IPFIX is a standardized protocol based on NetFlow v9 that allows for the export of IP flow information from network devices to a collector or management system.3

In the Prisma SD-WAN architecture, ION devices act as the exporters.4 Because the system is application-aware, it doesn't just export basic 5-tuple information (source/destination IP, ports, and protocol); it exports rich metadata including application IDs, performance metrics (latency, jitter, packet loss), and path information. This allows the Prisma SD-WAN Controller and the associated Analytics engine to reconstruct a complete picture of every flow in the network.

While other protocols like SNMPv3 are supported for basic device health monitoring (such as CPU or interface status) and ADEM (Autonomous Digital Experience Management) provides end-to-end visibility for mobile users or SASE-connected branches, IPFIX is the primary 'engine' for flow-level data across the SD-WAN fabric. Unlike traditional IP SLA, which relies on synthetic probes, the IPFIX-based monitoring in Prisma SD-WAN uses real-time application traffic to assess performance. This ensures that the visibility provided in the Flow Browser and Analytics dashboards accurately reflects the actual user experience, enabling granular troubleshooting and proactive capacity planning.

In Prisma SD-WAN, the Signal-to-Noise Ratio (SNR) is a critical metric used to monitor the health and performance of cellular WAN interfaces. SNR measures the strength of the desired signal relative to the background noise level; higher values indicate a cleaner signal, while lower values suggest that noise is overwhelming the signal, typically leading to increased packet loss, high latency, and reduced throughput.

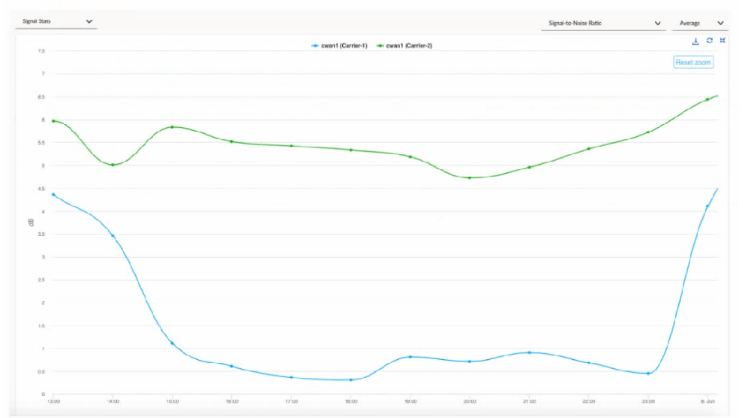

Analyzing the provided graph, Carrier-1 (blue line) shows a severe drop in SNR, plummeting from approximately 4.5 dB to nearly 0.3 dB between 15:00 and 23:00. An SNR value this low is indicative of a failing or highly unstable link that cannot reliably sustain data traffic, directly supporting Inference A---that Carrier-1 experienced significant performance degradation. In contrast, Carrier-2 (green line) maintains a much higher and more consistent SNR throughout the same period.

Prisma SD-WAN's AppFabric uses application-based path selection and SLA monitoring to ensure the best possible user experience. When the system detects that a primary path (like Carrier-1) has degraded below acceptable thresholds---often triggered by high loss or latency resulting from poor signal quality---it will dynamically steer application flows to an alternative healthy path. Therefore, Inference D is correct: because Carrier-1's quality became untenable while Carrier-2 remained stable, the ION device would have likely initiated a path switchover to move traffic from the degraded Carrier-1 to the healthier Carrier-2.
