Modern Dashboards represent a significant evolution over the legacy 'Classic' summary views in the SolarWinds Platform. According to the SolarWinds Platform Administrator Guide, there are several architectural differences designed to improve performance and flexibility.

Define visible data using SWQL (D): Unlike classic dashboards that rely on a fixed 'Data Selection' wizard or pre-built resources, modern dashboards allow administrators to hand-edit SWQL (SolarWinds Query Language) queries directly within the widget configuration. This provides near-infinite flexibility to filter and display data in ways that were previously impossible without custom coding.

Configure refresh rates (C): Classic dashboards typically rely on the global web console refresh interval (often 5 minutes) or a full page reload. Modern dashboards introduce the ability to set individual refresh intervals for each widget (from 1 second to 24 hours), or configure a 'Modern Widget Refresh' default for the entire dashboard. This ensures that critical real-time data is updated more frequently than static inventory data on the same page.

While 'NOC mode' (Option B) and 'Account Limitations' (Option A) are compatible with the broader SolarWinds environment, they are standard platform features that have existed in classic views for years and are not 'unique' new settings specific only to the modern dashboarding engine.

The export capabilities for chart-based reports are designed to provide both a visual representation and the underlying raw data. According to the SolarWinds Platform Administrator Guide, when viewing or scheduling a report that contains charts or graphs, the system supports two primary export formats:

PDF: This format is the standard for visual reports. It captures the rendered chart exactly as it appears in the Web Console, making it ideal for email distribution to management or for archival purposes where the visual trend is more important than the individual data points.

CSV (Comma Separated Values): When a chart is exported to CSV, the platform extracts the time-series data points used to generate that chart. This allows technical staff to import the raw performance numbers into external tools like Excel for deeper statistical analysis that may not be possible within the standard web view.

While the broader reporting engine supports Excel (.xls) for tabular reports (as seen in Question 8), the specific function for exporting chart components often defaults to CSV for the data layer and PDF for the visual layer. XML (Option D) is typically reserved for report definitions (transferring a report from one server to another) rather than exporting the data results of a chart.

Layout instability in the SolarWinds Web Console is almost always a result of overlapping permissions on shared views. According to the SolarWinds Platform Administrator Guide, summary views (dashboards) are often shared across entire departments or user groups.

The cause of widgets 'moving' unexpectedly is typically that users have edit view rights and are editing views used by multiple users (D). In SolarWinds, if a view is assigned to multiple people and those people have the 'Edit View' permission, any change made by one user---such as dragging a widget to a different column, adding a new resource, or removing an old one---is a global change to that view's definition in the database.

When User A rearranges the dashboard to suit their screen or preference, User B will see those changes the next time their page refreshes. This creates a 'tug-of-war' scenario where different users keep moving widgets back and forth. To prevent this, administrators should follow the principle of least privilege: remove 'Edit View' rights from standard users and only allow a small number of designated 'View Administrators' to make changes. If individual personalization is required, the administrator should create unique, personal views for each user or group so that their edits do not impact the wider organization.

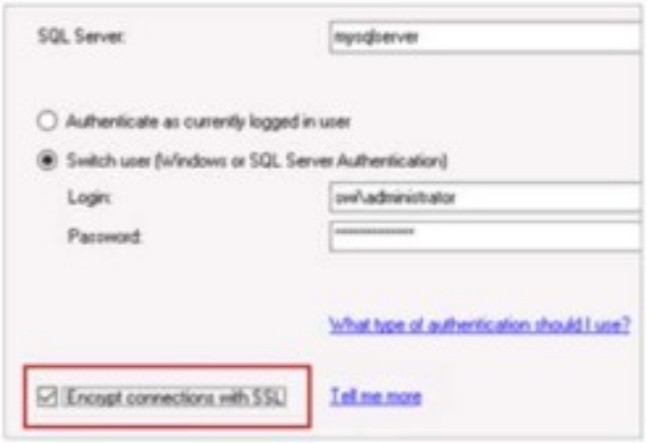

According to the SolarWinds Platform configuration documentation, the option to Encrypt connections with SSL during the database configuration wizard specifically dictates the security level of the communication channel between the application server and the database backend. When this box is checked, the platform ensures that the network data between SolarWinds' Hybrid Cloud Observability Platform server and the SQL server will be encrypted. This security measure is critical for protecting the integrity and confidentiality of the performance metrics, configuration data, and credentials as they traverse the internal network between these two primary architectural components.

This encryption utilizes Transport Layer Security (TLS) to wrap the TDS (Tabular Data Stream) protocol used by Microsoft SQL Server. By enabling this feature, the platform prevents potential 'man-in-the-middle' attacks where an adversary could sniff network traffic to intercept sensitive monitoring data or administrative information stored within the SQL database. It is important to note that for this setting to function correctly, the SQL Server must be configured with a valid SSL/TLS certificate that is trusted by the SolarWinds application server.

This setting differs from simple credential encryption (Option C) or secure storage (Option B) because it applies to all data transmitted during the session, not just the initial login exchange. Furthermore, while the configuration wizard does require a login account (Option A), that account's specific permissions are a separate functional requirement from the underlying encryption of the transport layer. Enabling SSL encryption is a standard best practice for organizations following strict compliance frameworks like HIPAA, PCI-DSS, or SOC2, where protecting data-in-transit is a mandatory requirement even on internal, 'trusted' network segments. This centralized encryption toggle simplifies the deployment of high-security observability environments by orchestrating the secure connection parameters through the standard SolarWinds Configuration Wizard interface.

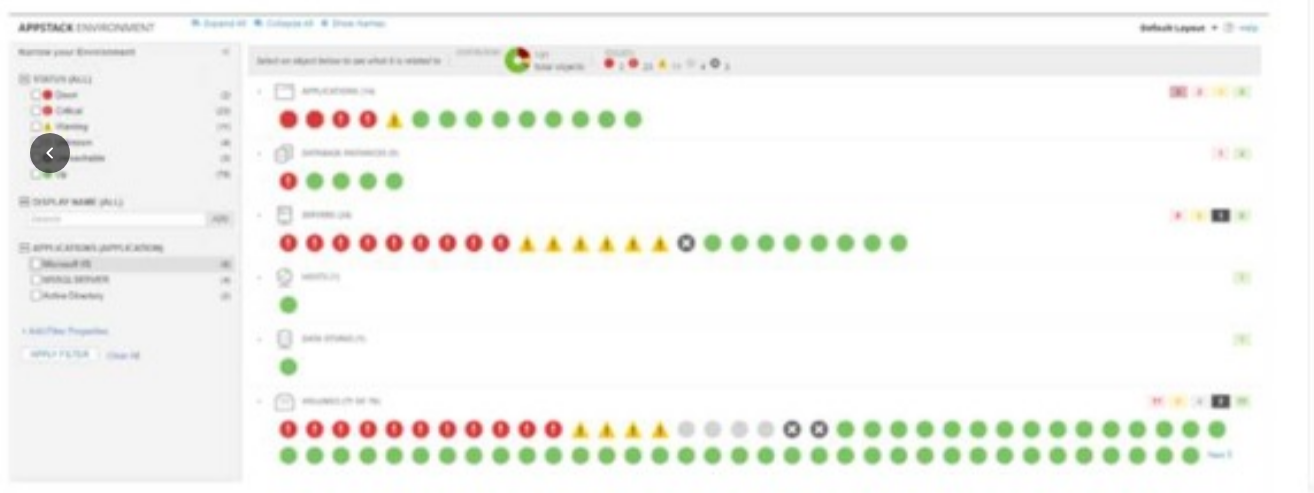

AppStack is a specialized visualization tool designed to show the 'stack' of dependencies between different layers of an IT environment. According to the SolarWinds Platform Administrator Guide, AppStack has two defining characteristics:

Automatic Relationship Gathering (A): The tool uses the data already collected by various modules (SAM, VMAN, SRM) to automatically map how applications, database instances, servers, virtual hosts, and storage volumes are linked. This eliminates the need for manual manual line-drawing in most cases.

Customizable Visual Mapping (B): It provides an interactive environment view where users can filter by status, application name, or site to see a visual map of the infrastructure. This allows a user to click on a failing application and see exactly which virtual host or storage array might be causing the failure due to its relationship.

Options C and D describe PerfStack (Performance Analysis), which is the tool used for time-series correlation and dragging metrics onto charts. AppStack focuses on the structure of the environment, whereas PerfStack focuses on the performance data of the entities within that structure.
