HPE6-A86 Exam Dumps and Practice Questions

The correct answer is D. By default, all VLAN traffic is tagged to traverse a trunk link except the native VLAN. In HPE Aruba Networking AOS-CX, a trunk interface can carry traffic for multiple VLANs, and VLAN tagging is used to identify traffic from different VLANs across the trunk. However, the native VLAN is the exception. HPE Aruba Networking documentation explains that the native VLAN is the VLAN to which incoming untagged traffic is assigned, and by default VLAN 1 is assigned as the native VLAN for trunk interfaces. This means normal trunk behavior is that VLAN traffic is tagged, while native VLAN traffic can be untagged unless configured otherwise. Option A is incomplete because it ignores native VLAN behavior. Option B is incorrect because the native VLAN concept applies to trunk interfaces generally, not only when a port is part of a LAG. Option C is incorrect because VLAN trunking applies to Layer 2 interfaces, not routed ports. Therefore, the default trunk behavior is tagged VLAN traffic except for the native VLAN.

The correct answer is B. The switch does not have enough PoE budget per port. The HPE Aruba Networking 580EX Series access point requires appropriate power to boot and illuminate its LEDs. HPE Aruba Networking documentation states that the 580EX Series supports 802.3bt Class 6 power or AC power. A standard HPE Aruba Networking CX 6000 48G 4SFP switch, such as the R8N86A model, is a non-PoE switch; the PoE-capable version is identified separately as the CX 6000 48G Class 4 PoE 4SFP 740W switch. Even when using a PoE-capable CX 6000 model, Class 4 PoE provides up to 30W per port, while the AP requires 802.3bt Class 6 or AC power for normal operation. Therefore, if the AP has no lights, the most likely cause from the options is insufficient or unavailable PoE power from the switch port. A wrong VLAN, missing STP configuration, or failure to connect to HPE Aruba Networking Central would not normally prevent the AP from receiving power and showing LEDs.

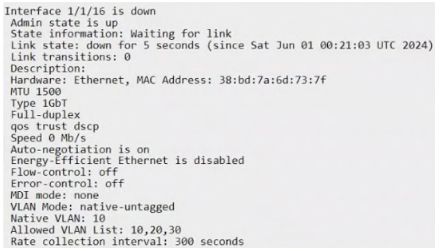

The correct answer is D. The link on interface 1/1/16 is not established. The output clearly states Interface 1/1/16 is down, Admin state is up, and State information: Waiting for link. This means the port is enabled administratively, but the physical link is not up. HPE Aruba Networking AOS-CX show interface documentation displays these fields to show operational and administrative interface status, including examples where the interface is down while the admin state remains up. Option A is incorrect because the output says qos trust dscp, which trusts Layer 3 DSCP markings, not Layer 2 CoS markings. Option B is incorrect because Admin state is up; an administratively disabled interface would be shut down. Option C is incorrect because the output shows VLAN Mode: native-untagged and Native VLAN: 10; native VLAN 10 is untagged, while the allowed VLAN list shows VLANs permitted on the trunk. Since the port is waiting for link, the immediate verified issue is that the physical link is not established

The correct answer is D. administrators. HPE Aruba Networking AOS-CX documentation for the 4100i, 6000, and 6100 switch series states that, in addition to user-defined local groups, there are three built-in user groups: administrators, operators, and auditors. The documentation also states that the default admin account belongs to the administrators group. This makes administrators the only valid default group among the answer choices. Option A, root, is not listed as a built-in AOS-CX user group. Option B, managers, is not one of the default AOS-CX groups. Option C, super-users, is also not listed as a built-in group. These names may appear in other systems or older platforms, but on HPE Aruba Networking CX 6100 switches, the built-in local user groups are administrators, operators, and auditors. Therefore, the correct default user group from the listed options is administrators.

The correct answer is A. A public CA signed certificate should be deployed. The browser warning appears because the captive portal is presenting a self-signed certificate that the client device does not trust. For guest access, client devices are usually unmanaged and cannot be expected to already trust an internal or self-signed certificate authority. HPE Aruba Networking documentation for captive portal deployments recommends that production environments obtain and install a certificate issued for the site or domain by a well-known Certificate Authority. This avoids browser trust warnings and gives guest users confidence that they are connecting to the correct portal. Option B is incorrect because disabling HTTPS and using HTTP would reduce security and expose portal traffic. Option C may work only for managed devices where the self-signed or private CA can be pushed into the trust store, but that is not practical for open wired guest access. Option D can be valid for internal managed users, but for guests, a public trusted CA certificate is the best answer.
